Apple · PHONE PROFILE

Apple iPhone 14 Pro Max

Name: Apple iPhone 14 Pro Max
Brand: Apple

The specifications, radiation measurements and practical choices for your phone.

Display6.7 inches

ChipsetApple A16 Bionic (4 nm)

FCC identifierBCG-E8141A

Compare this phone →Find a QuantaCase

RF Safe source record retrieved September 12, 2026. Regional specifications and test configurations may differ.

The SAR overview.

Reported US test values · W/kg averaged over 1 g of tissue

Head SAR · cellular only1.15 W/kg72% of US localized limit

Body SAR · cellular only1.07 W/kg67% of US localized limit

Hotspot SAR · cellular only1.03 W/kg64% of US localized limit

Head SAR · simultaneous1.40 W/kg87% of US localized limit

Body SAR · simultaneous1.46 W/kg91% of US localized limit

Hotspot SAR · simultaneous1.50 W/kg94% of US localized limit

0–0.400.41–0.800.81–1.201.21+ W/kgUS localized test values · 1 g average

Colors indicate reported SAR ranges, not a safety verdict. Results depend on test configuration and regional model. A lower listed maximum does not guarantee lower everyday exposure. How to read these numbers →

Additional SAR values & source information

Hotspot, cellular only (US)	1.03 W/kg
Product-specific source field (US)	1.03 W/kg
Head (EU, 10 g)	0.99 W/kg
Body (EU, 10 g)	0.98 W/kg
FCC ID	BCG-E8141A — FCC equipment search ↗
Source	RF Safe original phone profile ↗
Data note	Values are reported by the RF Safe source record and have not been independently re-tested here. Zero or blank source values are shown as not listed.

Your SAR comparison, at a glance.

Cellular-only and simultaneous-transmission values, side by side.

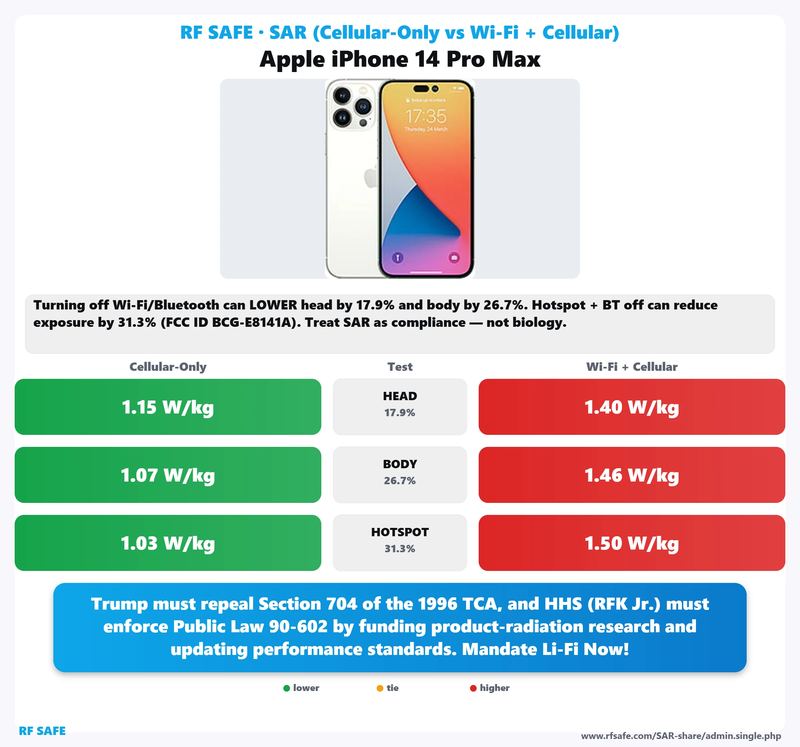

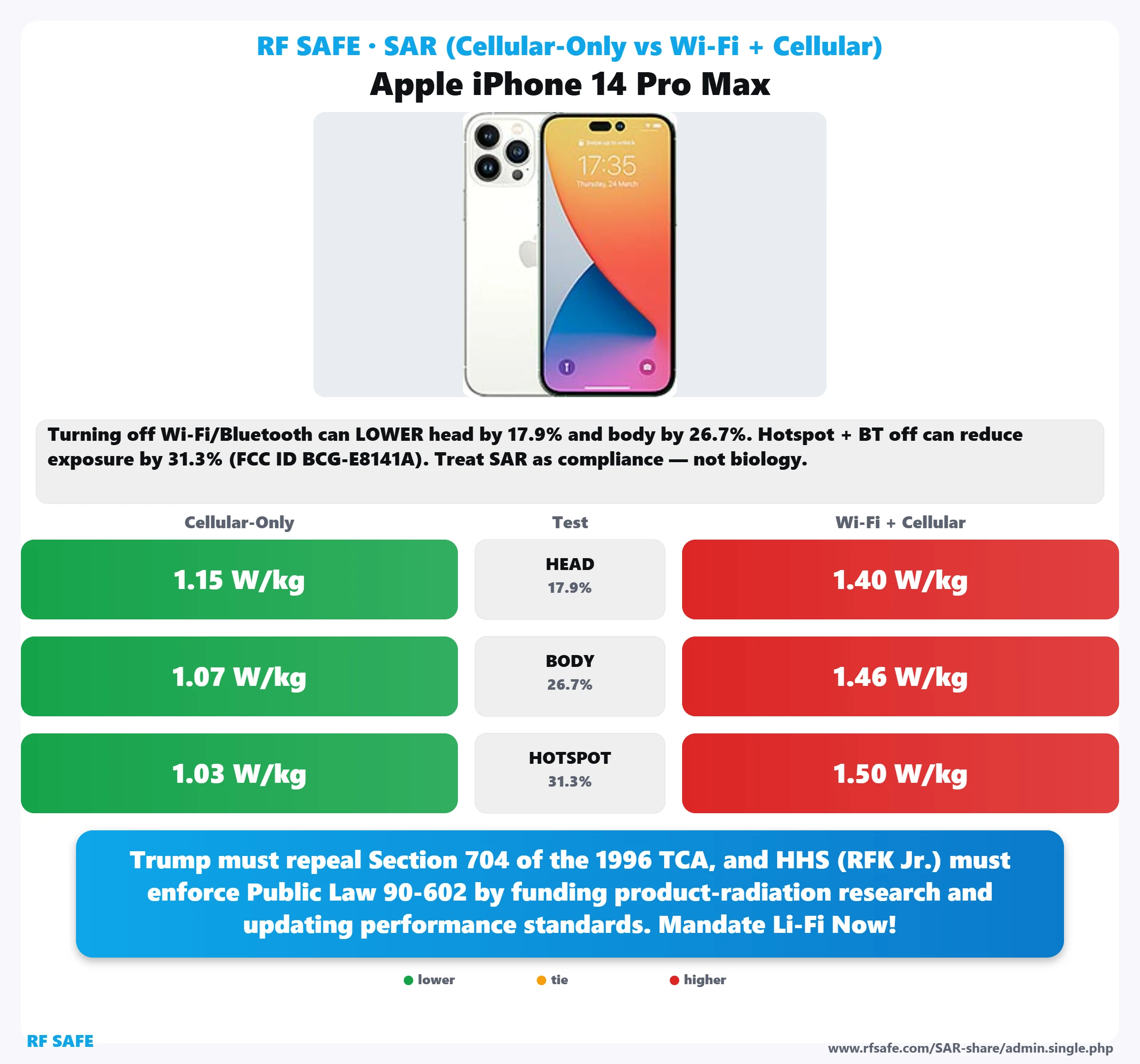

Apple iPhone 14 Pro Max SAR comparison chart showing cellular-only versus simultaneous Wi-Fi and cellular test values — RF Safe source chart. Green and red compare lower and higher values within this chart; they differ from the fixed SAR ranges above. Percentage differences compare test configurations and do not predict a personal exposure reduction.
Open full-size chart ↗Download web-size chart ↓

Two views. One clearer picture.

RF Safe reference illustrations for this phone.

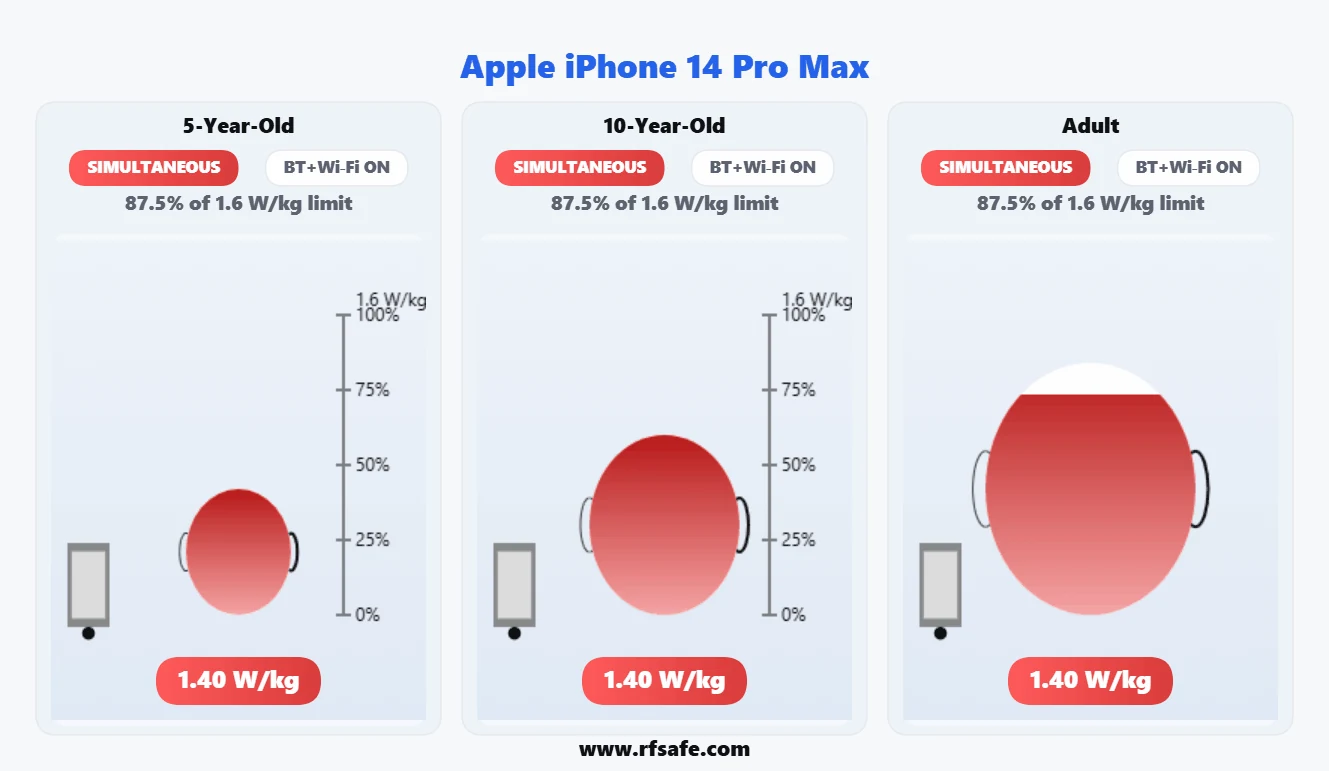

Head exposure reference

Apple iPhone 14 Pro Max head SAR reference illustration

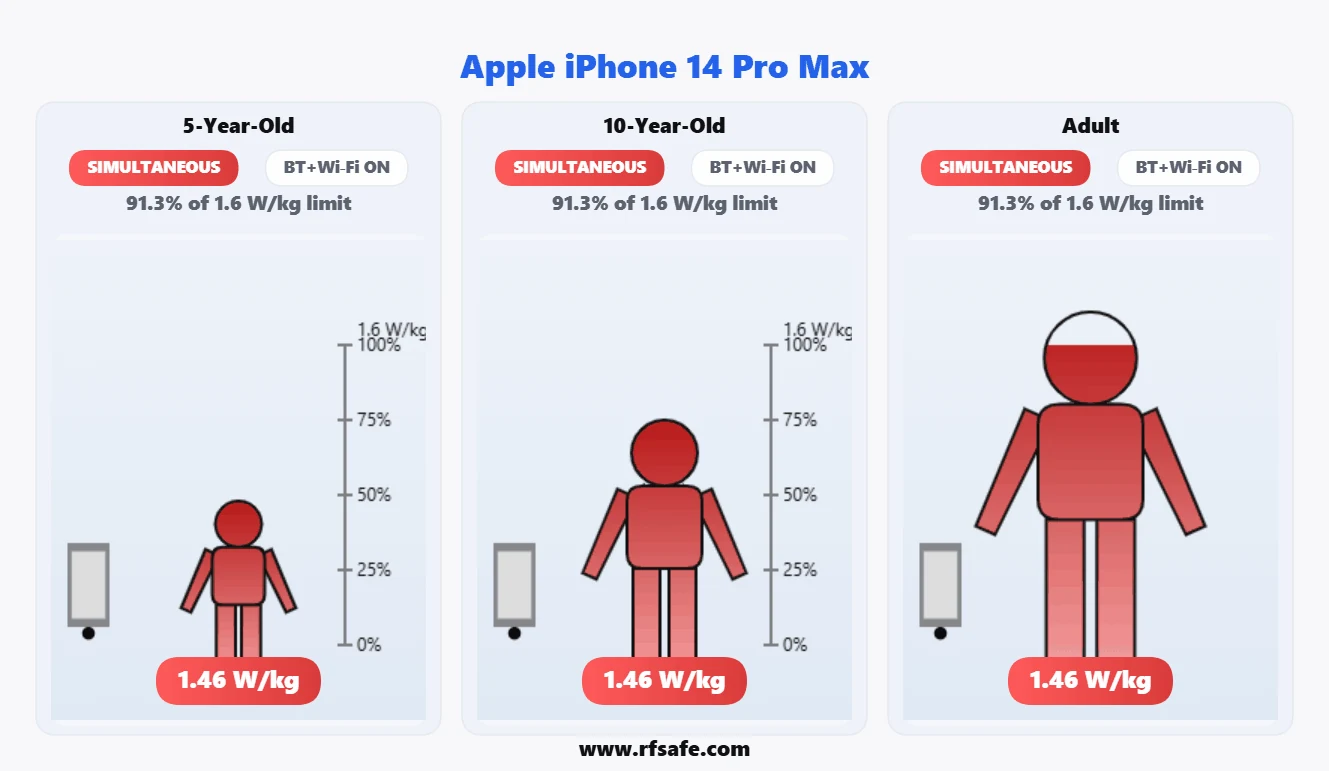

Body exposure reference

Apple iPhone 14 Pro Max body SAR reference illustration

Source illustrations visualize the RF Safe record. They are not scans of an individual, a measured personal dose, or a forecast of disease. Read the numerical labels and the original test context.

A practical introduction.Read the illustrated usage guide →

BETTER PHONE HABITS

Put the numbers into practice.

Watch the phone safety introduction, then explore the illustrated guide to distance, carrying and correct QuantaCase orientation.

Explore the usage guide →

Every specification, in one place.

Source specifications by category. Regional models, software and availability may differ.

General

Phone	Apple iPhone 14 Pro Max
Technology	GSM / CDMA / HSPA / EVDO / LTE / 5G
Announced	2022-09-07 22:16:08
Availability (source snapshot)	Available
Price (historical source)	₹ 127,999 / $ 1,049.99 / £ 1,129.99 / € 1,249.00
Model Names	A2894, A2651, A2893, A2895, iphone15,3

Display

Type	LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM)
Size	6.7 inches, 110.2 cm2 (~88.3% screen-to-body ratio)
Resolution	1290 x 2796 pixels, 19.5:9 ratio (~460 ppi density)
Protection	Ceramic Shield glass
Features	Always-On display
Display Test	Contrast ratio: Infinite (nominal)

Camera

Main Camera	Triple Camera: 48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22m, dual pixel PDAF, sensor-shift OIS 12 MP, f/2.8, 77mm (telephoto), 1/3.5", PDAF, OIS, 3x optical zoom 12 MP, f/2.2, 13mm, 120 (ultrawide), 1/2.55", 1.4m, dual pixel PDAF TOF 3D LiDAR scanner (depth)
Main Features	Dual-LED dual-tone flash, HDR (photo/panorama)
Video	4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, Cinematic mode (4K@24/30fps), stereo sound rec.
Selfie Camera	Single Camera: 12 MP, f/1.9, 23mm (wide), 1/3.6", PDAF, OIS (unconfirmed) SL 3D, (depth/biometrics sensor)
Selfie Camera Features	HDR, Cinematic mode (4K@24/30fps)
Selfie Camera Video	4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS

Battery

Type	Li-Ion 4323 mAh, non-removable (16.68 Wh)
Battery Test	Endurance rating 121h
Charging	Wired, PD2.0, 50% in 30 min (advertised) 15W wireless (MagSafe) 7.5W wireless (Qi)

Hardware

Operating system (source snapshot)	iOS 16, upgradable to iOS 16.3
Chipset	Apple A16 Bionic (4 nm)
CPU	Hexa-core (2x3.46 GHz Everest + 4x2.02 GHz Sawtooth)
GPU	Apple GPU (5-core graphics)
Performance	AnTuTu: 955884 (v9) GeekBench: 5423 (v5.1) GFXBench: 54fps (ES 3.1 onscreen)
Internal Storage	128GB 6GB RAM, 256GB 6GB RAM, 512GB 6GB RAM, 1TB 6GB RAM NVMe
Card Slot	No
Sensors	Face ID, accelerometer, gyro, proximity, compass, barometer Ultra Wideband (UWB) support Emergency SOS via satellite (SMS sending/receiving)

Connectivity

Wi-fi	Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, hotspot
Bluetooth	5.3, A2DP, LE
USB	Lightning, USB 2.0
GPS	GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS
NFC	Yes
Radio	No

Sound

Loudspeaker	Yes, with stereo speakers
3.5mm Jack	No
Loudspeaker Test	-24.3 LUFS (Very good)

Design

Type	Bar
Dimensions	160.7 x 77.6 x 7.9 mm (6.33 x 3.06 x 0.31 in)
Weight	240 g (8.47 oz)
Colors	Space Black, Silver, Gold, Deep Purple
Build	Glass front (Corning-made glass), glass back (Corning-made glass), stainless steel frame

Network

Speed	HSPA, LTE-A, 5G, EV-DO Rev.A 3.1 Mbps
SIM	Nano-SIM and eSIM - International Dual eSIM with multiple numbers - USA Dual SIM (Nano-SIM, dual stand-by) - China IP68 dust/water resistant (up to 6m for 30 min) Apple Pay (Visa, MasterCard, AMEX certified)
2G Network	GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM) CDMA 800 / 1900
3G Network	HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO
4G Network	1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2894, A2896 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66, 71 - A2651, A2893 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2895
5G Network	1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2894, A2896 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79, 258, 260, 261 SA/NSA/Sub6/mmWave - A2651 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79 SA/NSA/Sub6 - A2893 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2895
