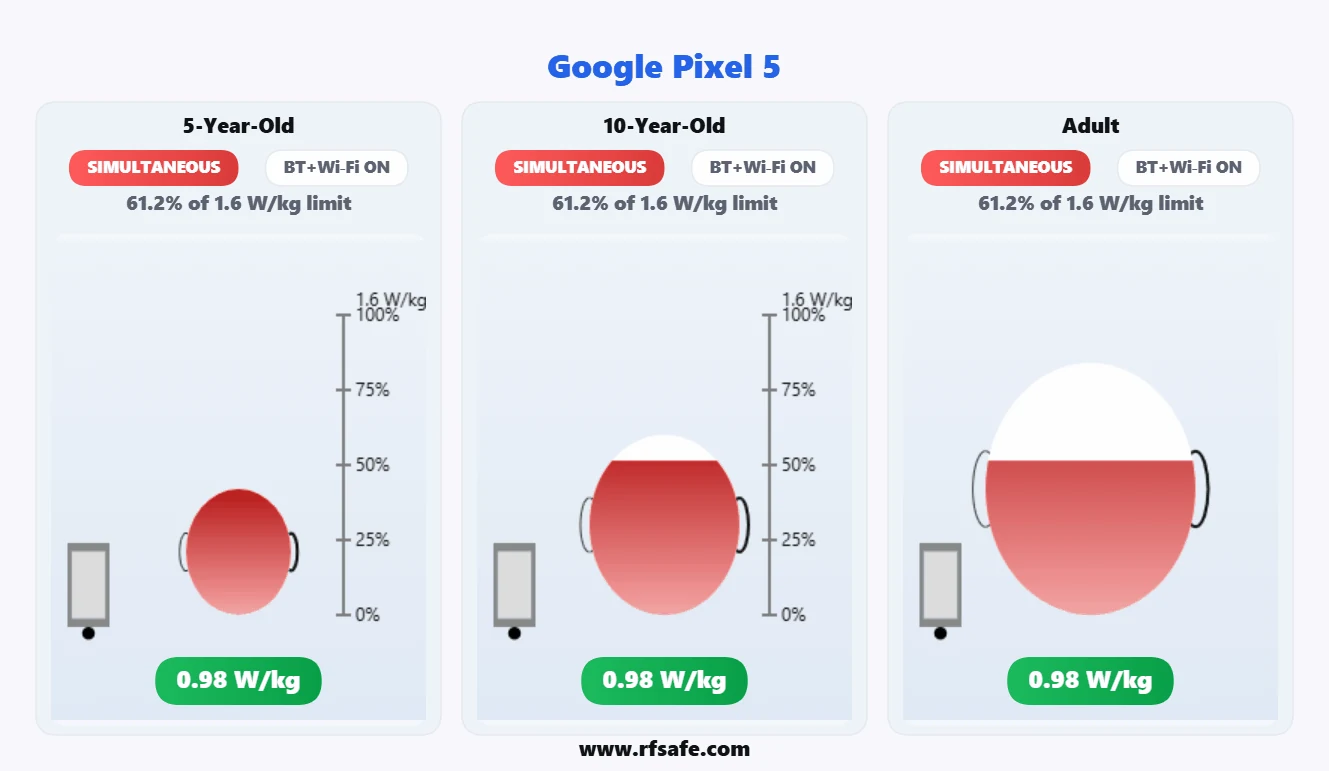

Head exposure reference
Google · PHONE PROFILE
Google Pixel 5
The specifications, radiation measurements and practical choices for your phone.
Display6.0 inches
ChipsetQualcomm SM7250 Snapdragon 765G 5G (7 nm)
FCC identifierA4RGD1YQ
RF Safe source record retrieved September 12, 2026. Regional specifications and test configurations may differ.
The SAR overview.
Reported US test values · W/kg averaged over 1 g of tissue
Head SAR · cellular only1.16 W/kg72% of US localized limit
Body SAR · cellular only1.18 W/kg74% of US localized limit
Hotspot SAR · cellular only0.98 W/kg61% of US localized limit
Head SAR · simultaneous0.98 W/kg61% of US localized limit
Body SAR · simultaneous1.49 W/kg93% of US localized limit
Hotspot SAR · simultaneous1.58 W/kg99% of US localized limit
0–0.400.41–0.800.81–1.201.21+ W/kgUS localized test values · 1 g average
Colors indicate reported SAR ranges, not a safety verdict. Results depend on test configuration and regional model. A lower listed maximum does not guarantee lower everyday exposure. How to read these numbers →
Additional SAR values & source information
| Hotspot, cellular only (US) | 0.98 W/kg |
|---|---|
| Product-specific source field (US) | 0.98 W/kg |
| Head (EU, 10 g) | — W/kg |
| Body (EU, 10 g) | — W/kg |
| FCC ID | A4RGD1YQ — FCC equipment search ↗ |
| Source | RF Safe original phone profile ↗ |
| Data note | Values are reported by the RF Safe source record and have not been independently re-tested here. Zero or blank source values are shown as not listed. |

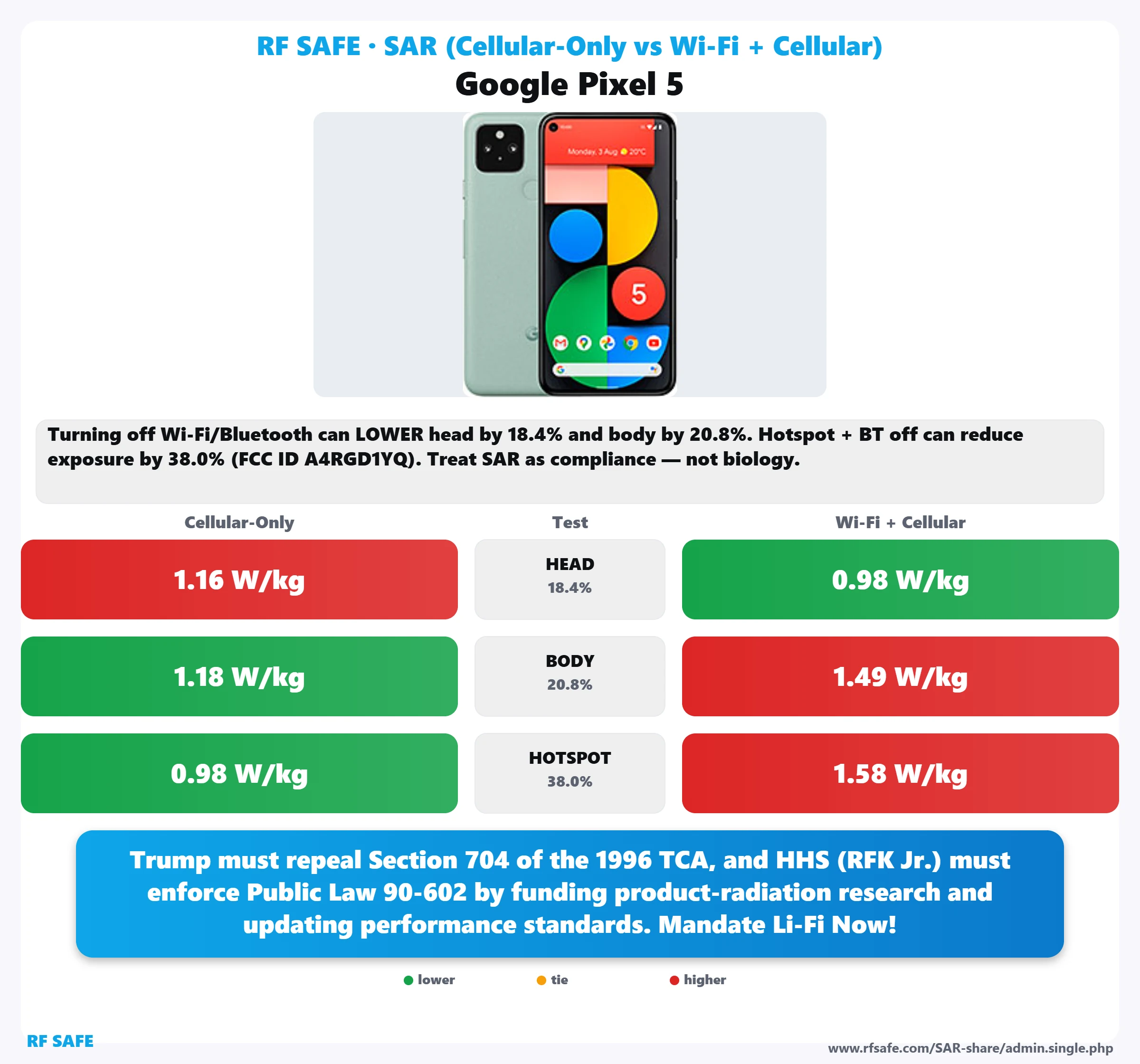

Your SAR comparison, at a glance.
Cellular-only and simultaneous-transmission values, side by side.
RF Safe source chart. Green and red compare lower and higher values within this chart; they differ from the fixed SAR ranges above. Percentage differences compare test configurations and do not predict a personal exposure reduction.
Two views. One clearer picture.
RF Safe reference illustrations for this phone.

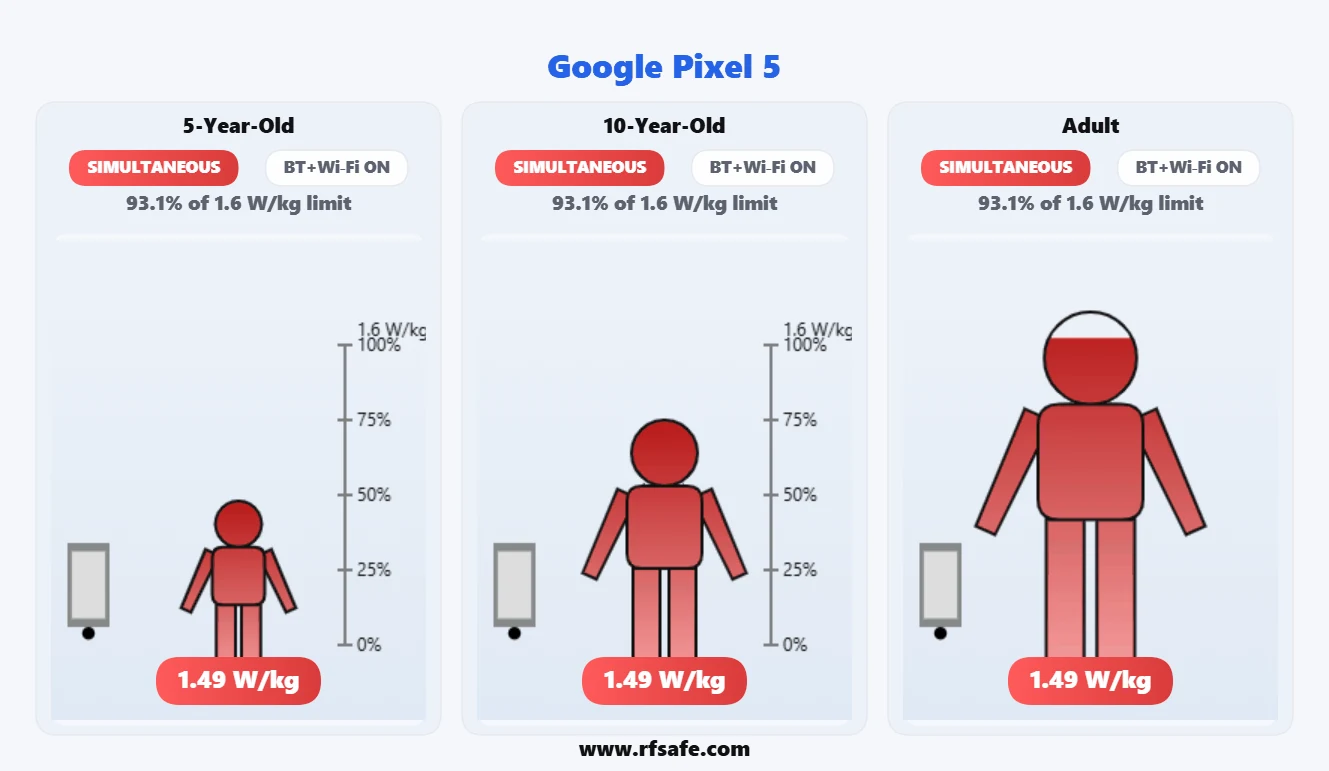

Body exposure reference
Source illustrations visualize the RF Safe record. They are not scans of an individual, a measured personal dose, or a forecast of disease. Read the numerical labels and the original test context.
A practical introduction.Read the illustrated usage guide →
BETTER PHONE HABITS
Put the numbers into practice.
Watch the phone safety introduction, then explore the illustrated guide to distance, carrying and correct QuantaCase orientation.
Explore the usage guide →Every specification, in one place.
Source specifications by category. Regional models, software and availability may differ.
General
| Phone | Google Pixel 5 |
|---|---|
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| Announced | 2020-09-30 22:18:28 |
| Availability (source snapshot) | Available. Released 2020, October 15 |
| Price (historical source) | $ 629.99 / € 719.77 / £ 599.00 / ₹ 63,710 |
| Model Names | GD1YQ, GTT9Q |
Display
| Type | OLED, 90Hz, HDR10+ |
|---|---|
| Size | 6.0 inches, 87.6 cm2 (~85.9% screen-to-body ratio) |
| Resolution | 1080 x 2340 pixels, 19.5:9 ratio (~432 ppi density) |
| Protection | Corning Gorilla Glass 6 |
| Features | Corning Gorilla Glass 6 Always-on display |
| Display Test | Contrast ratio: Infinite (nominal) |
Camera
| Main Camera | Dual Camera: 12.2 MP, f/1.7, 27mm (wide), 1/2.55", 1.4m, dual pixel PDAF, OIS 16 MP, f/2.2, 107 (ultrawide), 1.0m |
|---|---|
| Main Features | LED flash, Pixel Shift, Auto-HDR, panorama |
| Video | 4K@30/60fps, 1080p@30/60/120/240fps; gyro-EIS |
| Selfie Camera | Single Camera: 8 MP, f/2.0, 24mm (wide), 1/4.0", 1.12m |
| Selfie Camera Features | Auto-HDR |
| Selfie Camera Video | 1080p@30fps |
Battery
| Type | Li-Po 4080 mAh, non-removable |
|---|---|
| Battery Test | Endurance rating 95h |
| Charging | USB Power Delivery 2.0 Fast charging 18W Wireless charging 12W Reverse charging 5W |
Hardware
| Operating system (source snapshot) | Android 11 |
|---|---|
| Chipset | Qualcomm SM7250 Snapdragon 765G 5G (7 nm) |
| CPU | Octa-core (1x2.4 GHz Kryo 475 Prime & 1x2.2 GHz Kryo 475 Gold & 6x1.8 GHz Kryo 475 Silver) |
| GPU | Adreno 620 |
| Internal Storage | 128GB 8GB RAM |
| Card Slot | No |
| Sensors | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass, barometer |
Connectivity
| Wi-fi | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot |
|---|---|
| Bluetooth | 5.0, A2DP, LE, aptX HD |
| USB | USB Type-C 3.1 |
| GPS | Yes, with A-GPS, GLONASS, GALILEO, QZSS, BDS |
| NFC | Yes |
| Radio | No |
Sound
| Loudspeaker | Yes, with stereo speakers |
|---|---|
| 3.5mm Jack | No |
Design
| Type | Bar |
|---|---|
| Dimensions | 144.7 x 70.4 x 8 mm (5.70 x 2.77 x 0.31 in) |
| Weight | 151 g (5.33 oz) |
| Colors | Just Black, Sorta Sage |
| Build | Glass front (Gorilla Glass 6), aluminum back, aluminum frame |
Network
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (CA), 5G |
|---|---|
| SIM | Nano-SIM and/or eSIM |
| 2G Network | GSM 850 / 900 / 1800 / 1900 |
| 3G Network | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G Network | 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 38, 39, 40, 41, 42, 46, 48, 66, 71 |
| 5G Network | 1, 2, 3, 5, 7, 8, 12, 28, 41, 66, 71, 77, 78, 258, 260, 261 Sub6/mmWave - GD1YQ |
