Apple iPhone 8 Plus
The specifications, radiation measurements and practical choices for your phone.
Display5.5 inches
ChipsetApple A11 Bionic (10 nm)
FCC identifierBCG-E3160A
RF Safe source record retrieved September 12, 2026. Regional specifications and test configurations may differ.
The SAR overview.
Reported US test values · W/kg averaged over 1 g of tissue
Head SAR · cellular only1.09 W/kg68% of US localized limit
Body SAR · cellular only1.09 W/kg68% of US localized limit
Hotspot SAR · cellular only1.09 W/kg68% of US localized limit
Head SAR · simultaneous1.48 W/kg92% of US localized limit
Body SAR · simultaneous1.59 W/kg99% of US localized limit
Hotspot SAR · simultaneous1.59 W/kg99% of US localized limit
0–0.400.41–0.800.81–1.201.21+ W/kgUS localized test values · 1 g average
Colors indicate reported SAR ranges, not a safety verdict. Results depend on test configuration and regional model. A lower listed maximum does not guarantee lower everyday exposure. How to read these numbers →
Additional SAR values & source information
| Hotspot, cellular only (US) | 1.09 W/kg |
|---|---|
| Product-specific source field (US) | 1.09 W/kg |
| Head (EU, 10 g) | 0.99 W/kg |
| Body (EU, 10 g) | 0.99 W/kg |
| FCC ID | BCG-E3160A — FCC equipment search ↗ |
| Source | RF Safe original phone profile ↗ |
| Data note | Values are reported by the RF Safe source record and have not been independently re-tested here. Zero or blank source values are shown as not listed. |

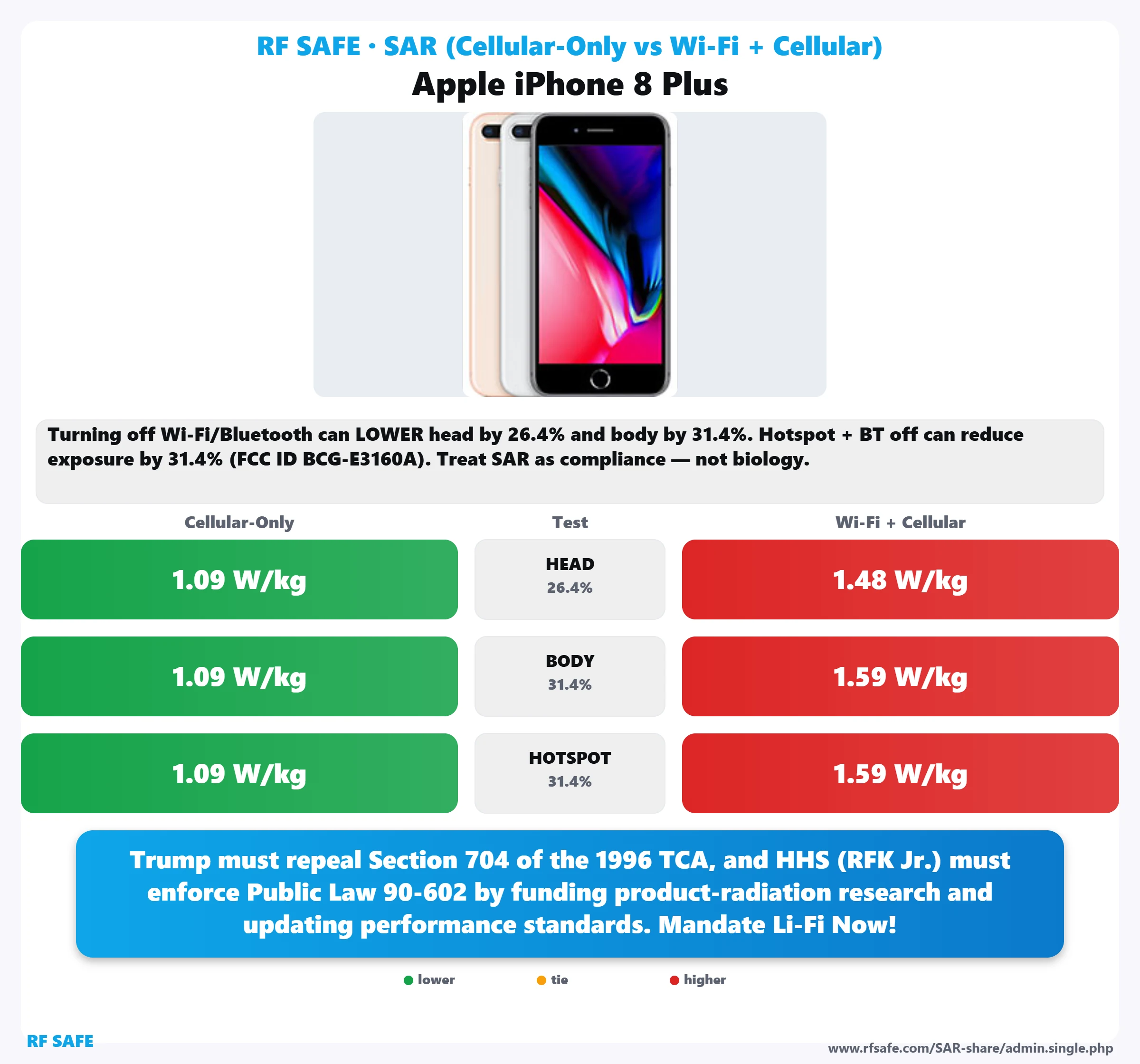

Your SAR comparison, at a glance.
Cellular-only and simultaneous-transmission values, side by side.
RF Safe source chart. Green and red compare lower and higher values within this chart; they differ from the fixed SAR ranges above. Percentage differences compare test configurations and do not predict a personal exposure reduction.

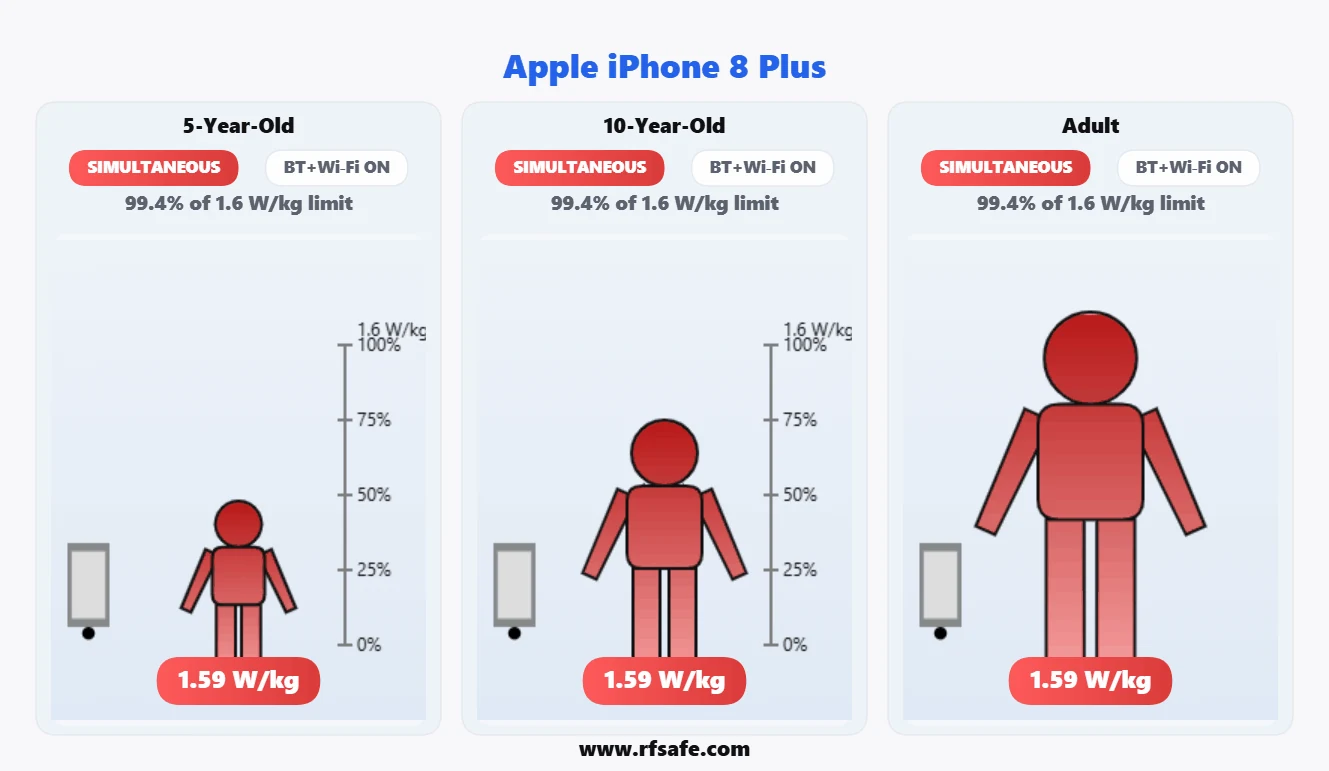

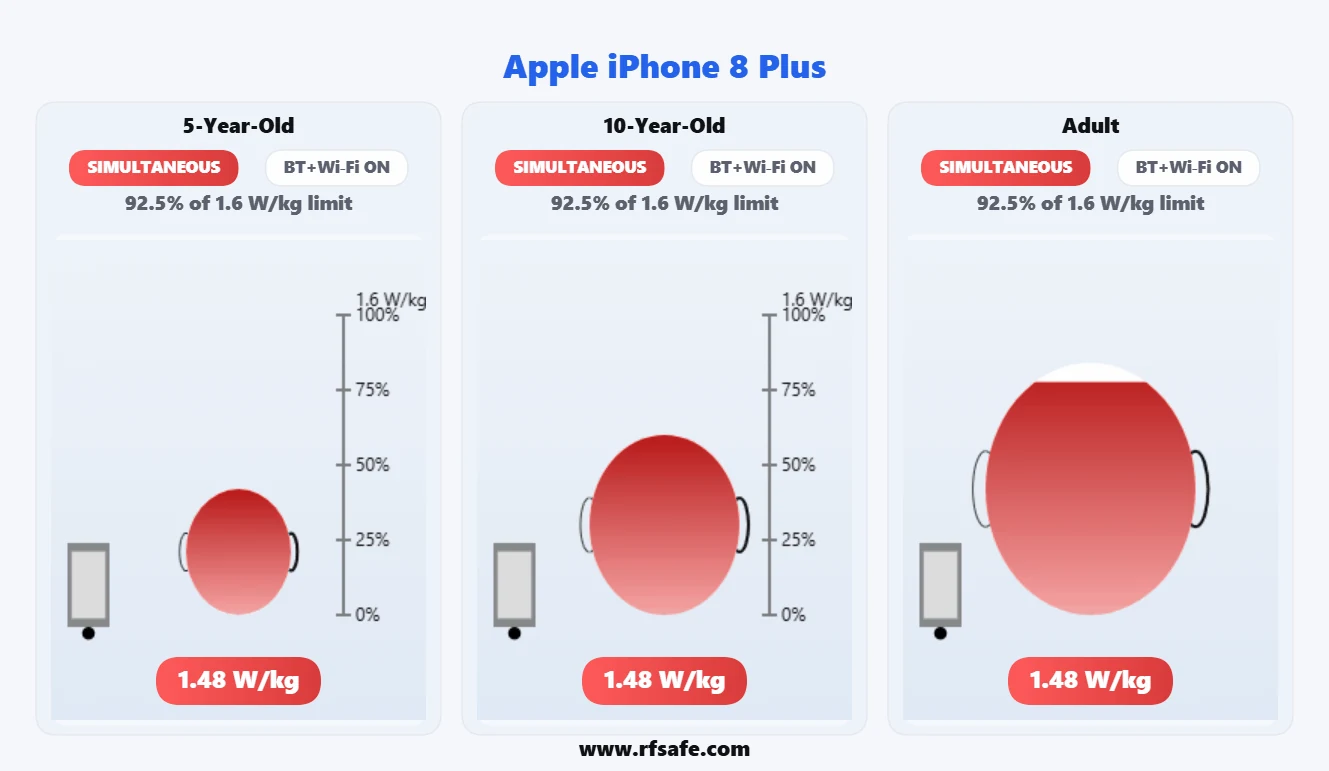

Two views. One clearer picture.
RF Safe reference illustrations for this phone.
Body exposure reference
Source illustrations visualize the RF Safe record. They are not scans of an individual, a measured personal dose, or a forecast of disease. Read the numerical labels and the original test context.
A practical introduction.Read the illustrated usage guide →
BETTER PHONE HABITS
Put the numbers into practice.
Watch the phone safety introduction, then explore the illustrated guide to distance, carrying and correct QuantaCase orientation.
Explore the usage guide →Every specification, in one place.
Source specifications by category. Regional models, software and availability may differ.
General
| Phone | Apple iPhone 8 Plus |
|---|---|
| Technology | GSM / HSPA / LTE |
| Announced | 2017, September 12. Released 2017, September 22 |
| Availability (source snapshot) | Discontinued |
| Price (historical source) | About 340 EUR |
| Model Names | A1864, A1897, A1898, , A1899, iPhone10,2, iPhone10,5 |
Display
| Type | Retina IPS LCD, 625 nits (typ) |
|---|---|
| Size | 5.5 inches, 83.4 cm2 (~67.4% screen-to-body ratio) |
| Resolution | 1080 x 1920 pixels, 16:9 ratio (~401 ppi density) |
| Protection | Ion-strengthened glass |
| Features | 3D Touch display & home button |
| Display Test | Contrast ratio: 1395:1 (nominal), 3.957 (sunlight) |
Camera
| Main Camera | Dual Camera: 12 MP, f/1.8, 28mm (wide), PDAF, OIS 12 MP, f/2.8, 57mm (telephoto), PDAF, 2x optical zoom |
|---|---|
| Main Features | Quad-LED dual-tone flash, HDR |
| Video | 4K@24/30/60fps, 1080p@30/60/120/240fps |
| Selfie Camera | Single Camera: 7 MP, f/2.2, 32mm (standard) |
| Selfie Camera Features | Face detection, HDR |
| Selfie Camera Video | 1080p@30fps |
Battery
| Type | Li-Ion 2691 mAh, non-removable (10.28 Wh) |
|---|---|
| Battery Test | Endurance rating 81h |
| Charging | 15W wired, PD2.0, 50% in 30 min (advertised) Wireless (Qi) |
Hardware
| Operating system (source snapshot) | iOS 11, up to iOS 16.3 |
|---|---|
| Chipset | Apple A11 Bionic (10 nm) |
| CPU | Hexa-core (2x Monsoon + 4x Mistral) |
| GPU | Apple GPU (three-core graphics) |
| Performance | GeekBench: 10037 (v4.4) |
| Internal Storage | 64GB 3GB RAM, 128GB 3GB RAM, 256GB 3GB RAM NVMe |
| Card Slot | No |
| Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer |
Connectivity
| Wi-fi | Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot |
|---|---|
| Bluetooth | 5.0, A2DP, LE |
| USB | Lightning, USB 2.0 |
| GPS | GPS, GLONASS, GALILEO, QZSS |
| NFC | Yes |
| Radio | No |
Sound
| Loudspeaker | Yes, with stereo speakers |
|---|---|
| 3.5mm Jack | No |
| Loudspeaker Test | Voice 76dB / Noise 74dB / Ring 79dB |
Design
| Type | Bar |
|---|---|
| Dimensions | 158.4 x 78.1 x 7.5 mm (6.24 x 3.07 x 0.30 in) |
| Weight | 202 g (7.13 oz) |
| Colors | Gold, Space Gray, Silver, Red |
| Build | Glass front (Corning-made glass), glass back (Corning-made glass), aluminum frame |
Network
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (3CA) Cat12 600/150 Mbps, EV-DO Rev.A 3.1 Mbps |
|---|---|
| SIM | Nano-SIM IP67 dust/water resistant (up to 1m for 30 min) Apple Pay (Visa, MasterCard, AMEX certified) |
| 2G Network | GSM 850 / 900 / 1800 / 1900 |
| 3G Network | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G Network | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 29, 30, 34, 38, 39, 40, 41, 66 |
